Configuration for AC500-eCo CPU
-

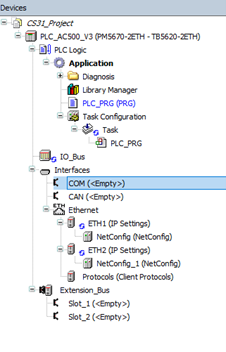

In the device tree right-click the „COM (<Empty>)“ node under the „Interfaces“ and select „Add object“.
-
Select the the „COM1“ interface and confirm.
-
Right-click the node „CAA_SerialCom“ and select „Add object“.
-
Select the „CS31-Bus“ node and confirm.
Configuration for CPU
For the AC500-eCo V3 CPUs, an option board for RS485 serial interface TA5142-RS485(I) must be used. Depending on the AC500-eCo V3 CPU type several option boards will be available. Below each RS485 option board node a separate instance of the CS31 protocol can be configured.
-

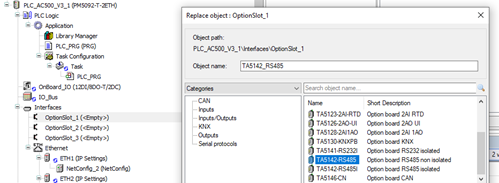

In the device tree right-click an empty slot under the „Interfaces“ node and select „Add object“.
-
Select an RS485 option board and confirm.
-
Right-click the option board and select „Add object“.
-
Select the „CS31-Bus“ node and confirm.
Parameter
Double-click the „CS31_Bus“ node to configure the parameters.
The following parameter is available for the CS31-bus.
|
Parameter |
Defauls value |
Wert |
Beschreibung |
|---|---|---|---|
|
Run on config fault |
Nein |
Nein |
Das SPS-Programm wird auch bei Fehlern in der Konfiguration ausgeführt. |
|
Ja |
Bei Fehlern in der Konfiguration wird das SPS-Programm nicht ausgeführt. |
